The LED 220V AC circuit is very simple and efficient. Here I have connected 8 LEDs (5-mm, 3V) in series and supply the circuit using a transformerless power supply. Required components for this 220V LED circuit: 0.22uF 400V AC capacitor; 100uF 35V DC capacitor; 560-ohm 1-watt resistor; 1M .25-watt resistor;
*how to connect LED light to 220v AC
220V LED Circuit Schematic. More LEDs can be added by reducing the value of R2.Since the circuit is directly connected to mains, take utmost care to avoid shock. No components should be touched when it is connected to mains. 230V LED Express PCB Layout.
Bobine LED 220V AC SMD5050 60 LED/m RGB (50 Mètres)
The circuit passes 7mA for each 100n in each direction of the AC. In the reverse direction the zener acts like an ordinary diode with a drop of 0.7v . In the forward direction the current flows through the LED. This current is 7 x 4.7 = 33mA The voltage across the LED is 1.8v The voltage drop across the 10R is .033 x 10 = 0.33v
How to Connect LED Light 220V AC YouTube
Amazon.com: 220v led lights.. HOOK 100W Led Flood Light AC 220V 230V 240V Outdoor Floodlight Spotlight IP65 Waterproof LED Street Lamp Landscape Lighting (Cool White) 3.1 out of 5 stars 21. $14.50 $ 14. 50. FREE delivery Thu, Jan 4 on $35 of items shipped by Amazon. Overall Pick.
How to Connect LED Light to 220V AC supply YouTube
Free 2-day Shipping On Millions of Items. No Membership Fee. Shop Now!
Tira LED 220V AC SMD5050 IP65 RGB 50m ¡en 360°! DivisionLED
How to connect LED light to 220v ACVideo link: https://youtu.be/9Lx0z3PETMoCircuit Diagram and More detail https://tinyurl.com/yaymw2yphttps://albrtech.com.
LED Strip 360 220V AC 60 LED/m RGB Led Enzo
Lower wattage of resistor like 1/2 watt or lower will not do and may burn since they are meant for 6v DC circuits, not for 220v AC Mains. 1. Connect black anode of diode to negative of the led. 2. connect the resistor to the positive of the LED. 3. Connect the free ends of the diode and resistor to the male pins.
How to connect LED with 220V AC supply (with calculation)
Figure 1b - C3LED circuit: A typical C 3 LED device combines 2 or more LEDs/die (in multiples of 2 or more, to use both halves of the AC cycle efficiently) with a capacitor.. Mike Miskin explains the role of the capacitor in the circuit. "Much like the resistor in the DC circuit, the capacitor drops the voltage and delivers the required current to the LEDs, based on the voltage and frequency.

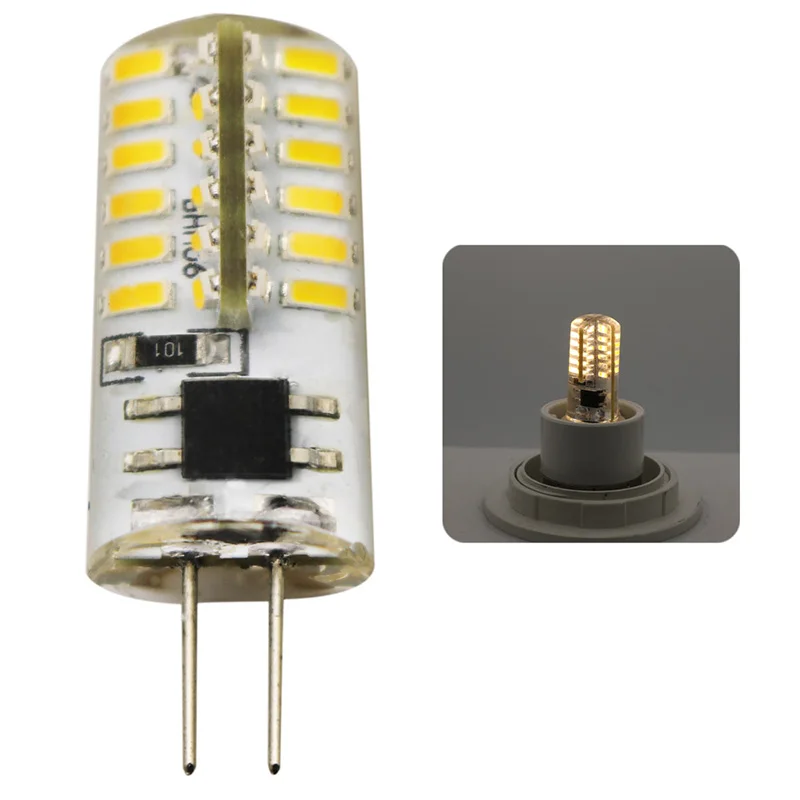

1x Lampada LED G4 Lamp 220V 4W AC 220V G4 LED bulb SMD3014 48 Replace 30w Halogen Light 360 Beam
